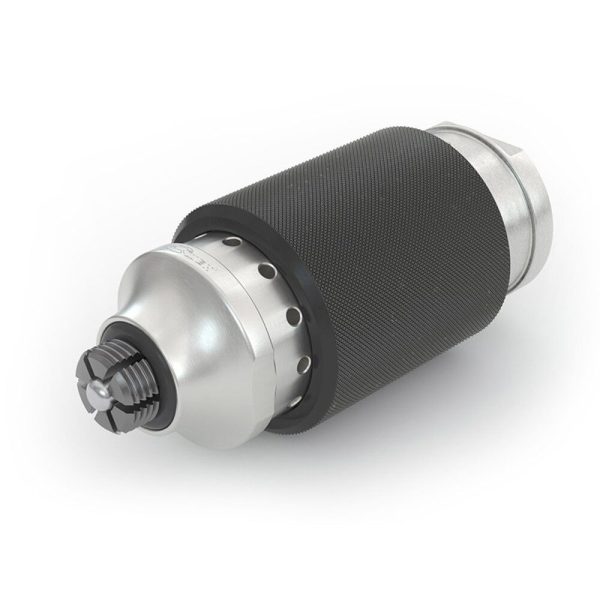

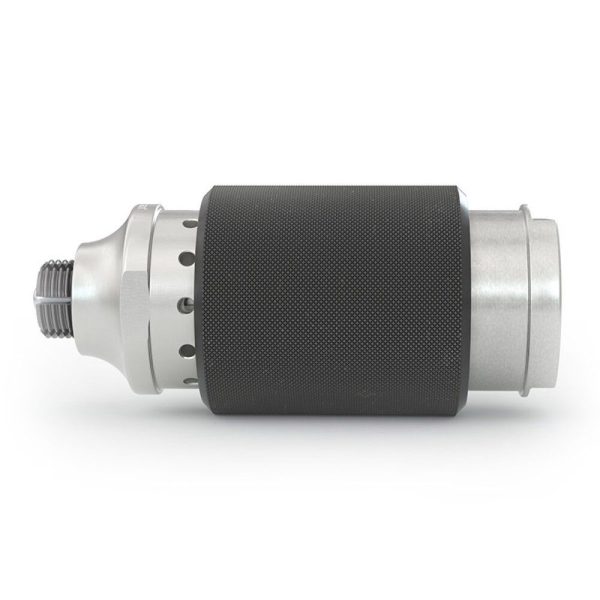

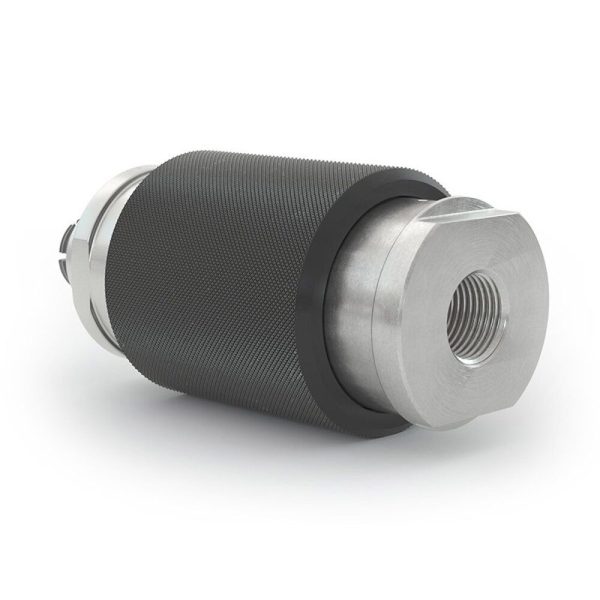

WEH® Connector TW05
Features :
1. Automation possible
2. Compact design
3. Connection in seconds
4. Ergonomic design
5. High-grade materials
6. Increased productivity & Cost reductions
7. No hand tightening required
8. Simple seal replacement
9. WEH® Jaw Locking Mechanism
Application :
Quick coupler for pressure testing / function testing / leak testing with compressed air of pneumatic components with female threads for the following standard sizes:
- Whitworth tube thread to DIN EN ISO 228-1 | G1/8″ up to G1/2″
- NPT thread (ANSI/ASME B1.20.1-1983) | NPT 1/8″ up to NPT 1/2″
The TW05 Connector is suitable for testing pneumatic cylinders / mini-cylinders, pneumatic valves, fixtures, air engine, pivot drives, radiators and pneumatic tools. In combination with a control housing it is the ideal tool for automated leak tests.
WEH® TW05 - Quick connector for efficient leak testing
With the WEH® TW05 Quick connector pneumatic components are tested faster than ever before during series production. It is the ideal tool for function, pressure and leak testing. Connecting and pressure impacting of the test piece is accomplished in one operation by simple actuation of the sliding sleeve. Safe and pressure-tight connections to internal threads of the most diverse connection configurations are made in just seconds – without tedious hand-tightening. Pneumatic cylinders, pneumatic valves, pneumatic tools, air engines, fixtures, pivot drives etc. can be connected in just seconds and checked for leak tightness and function.
